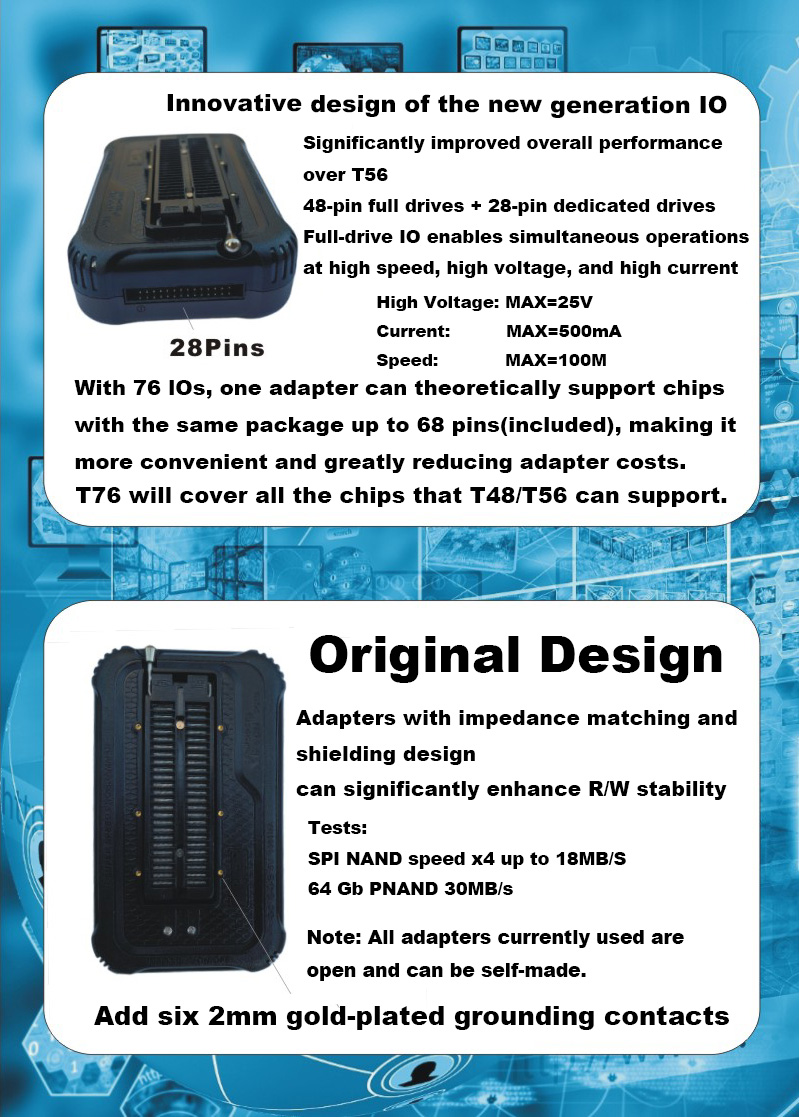

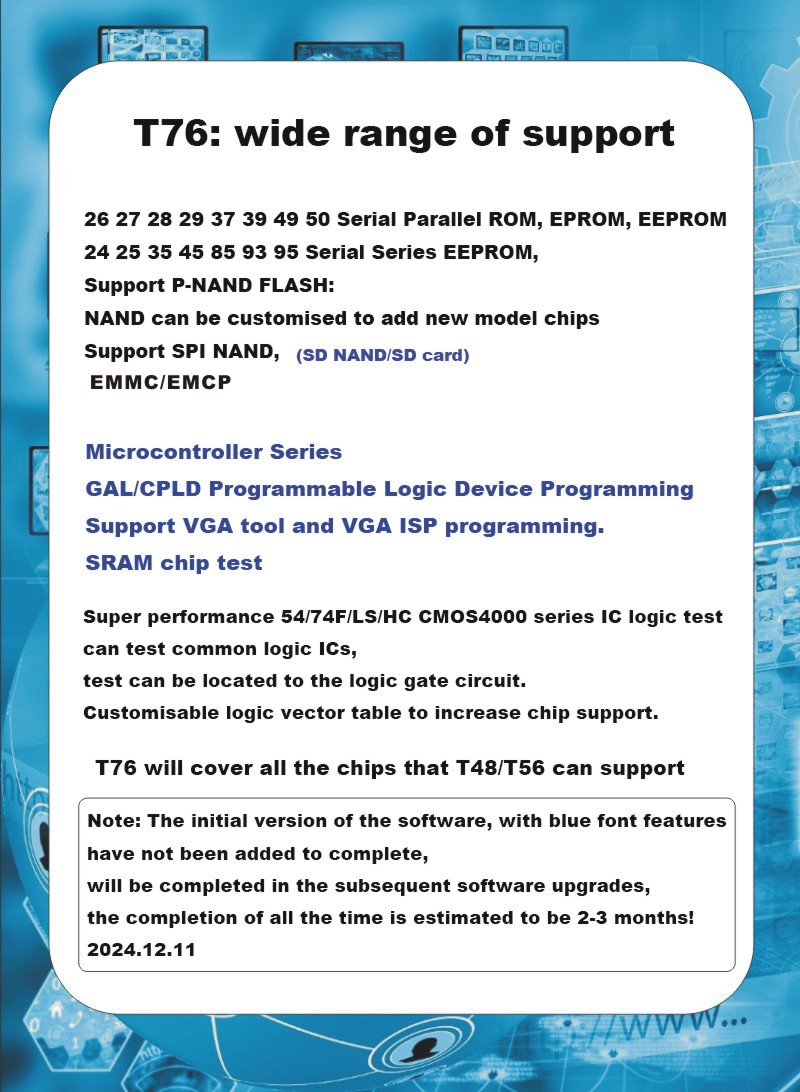

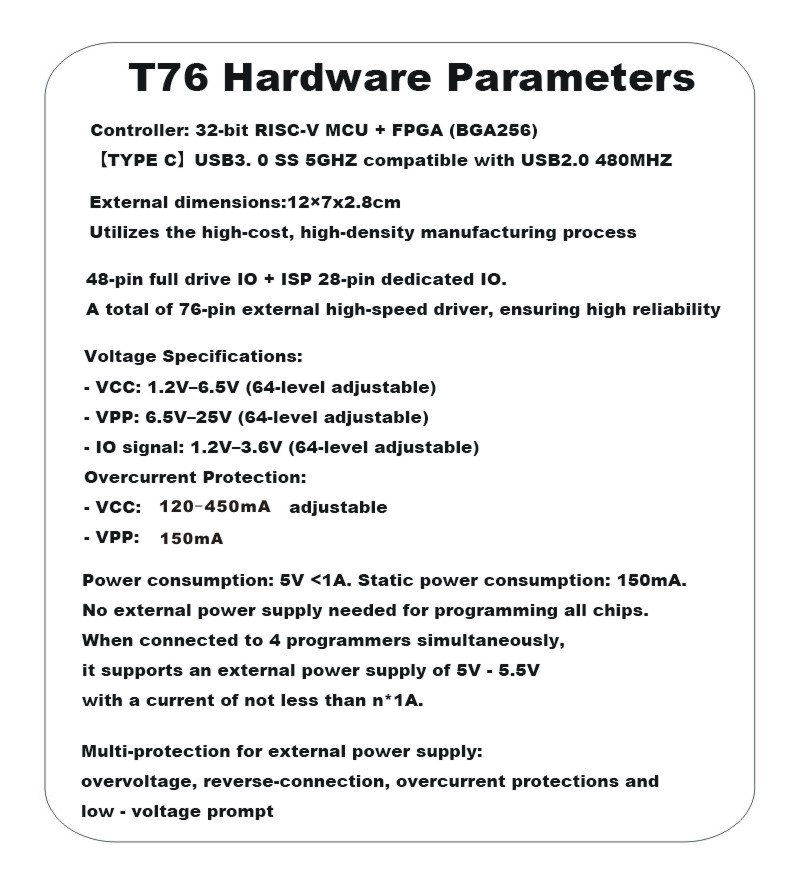

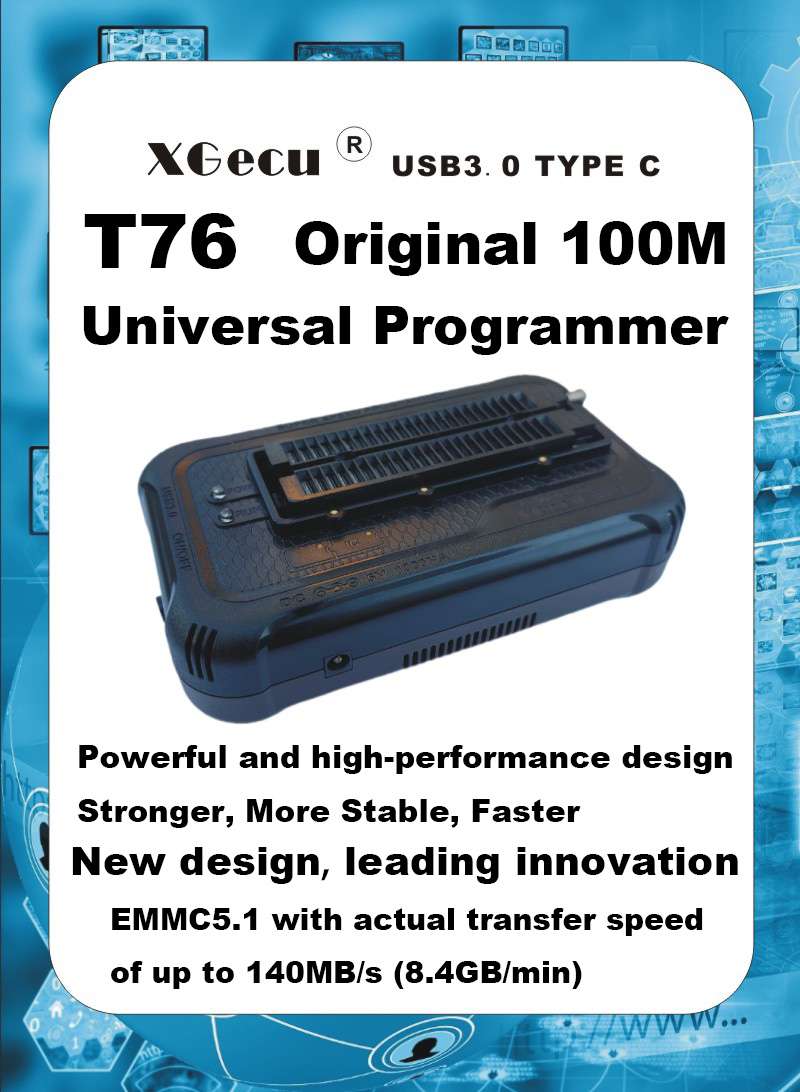

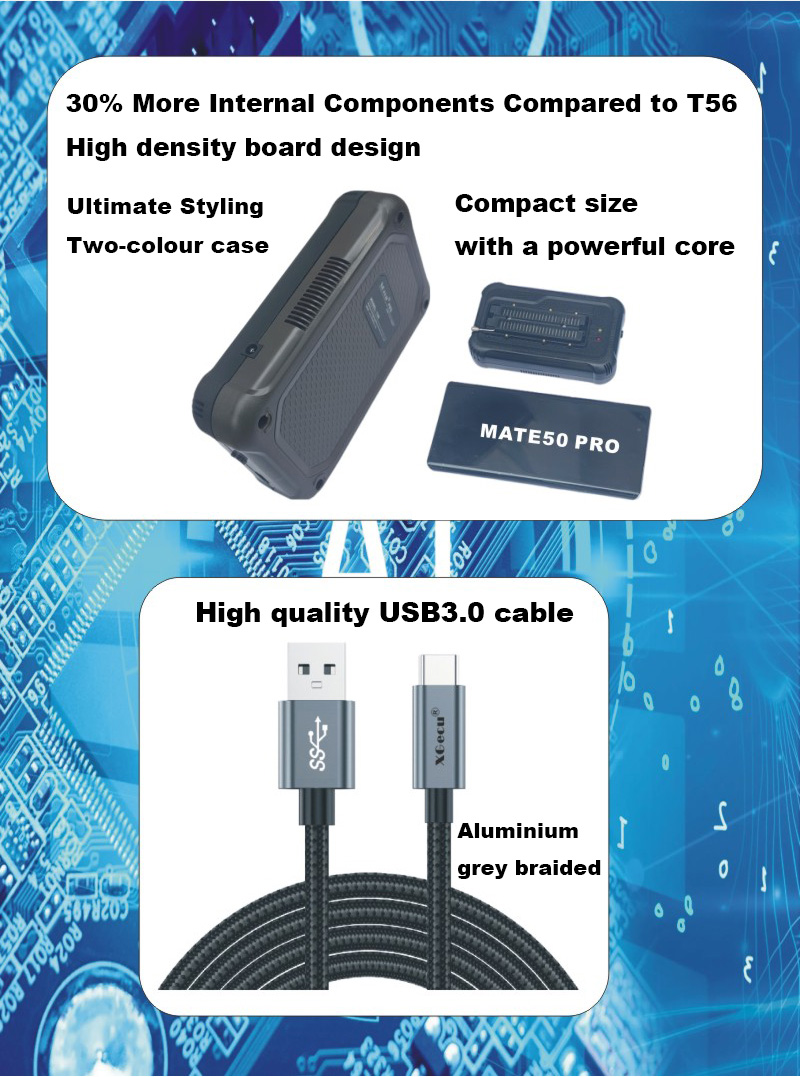

XGecu T76 USB3.0 Universal programmer
Click download the software
SIZE: 12cm x 7cm x 2.8cm
Super performance/Super speed/ Super small portable/
Cool appearance/ Low power consumption / Super stability
XGecu T56 Universal programmer
Click view more details
SIZE: 12.9cm x 8.5cm x 2.9cm
Super performance/Super speed/ Super small portable/
Cool appearance/ Low power consumption / Super stability
Notice : Old model TL866A/CS programmer is off the shelf
1. We has already recycled and destroyed the TL866A and TL866CS programmers that are not sold by authorized dealers. If there are some TL866CS/A programmers in stock, please contact us for return processing.
(For dealers only ，If you are a dealer, please contact your supplier in China. return time limit: 2019-6-30 )
2. The stores immediately stopped selling the old TL866CS/TL866A programmer. At the same time, all e-commerce platforms (Taobao, Ebay, AliExpress) are off the shelves.
3. Please note that the TL866A/CS be stopped delivery in February 2018. It can be confirmed that the TL866CS TL866A products sold on e-commerce platforms such as AliExpress, Ebay and Taobao are all pirated and counterfeit products. We are proceeding to defend the rights. At the same time, warn the user, do not buy the old TL866A/CS model by listening to letter.
Haikou Xingong Electronics Co.,Ltd
2019-3-16
T48/T56/TL866II Plus
| Description | TL866II Plus | T48 | T56 |
|---|---|---|---|
| MCU/ IO | 16bits 32MHZ 40P |
32 Bits 120MHZ 40P+16P |
32Bits200MHZ +FPGA(48P+8P) |
| USB | 1.1FS 12MHZ |
2.0HS 480MHZ |
2.0HS 480MHZ |
| NAND FLASH | MAX:8Gb 3.3Vonly |
MAX:256Gb 8/16bis /1.8V |
MAX:256Gb 8/16bits 1.8V |
| SPI NAND | Not support |
YES |
YES |
| 25 Nor Flash Maximum capacity |
512M CLK： 8MHZ |
2Gb CLK:30MHZ |
2Gb CLK:50MHZ |
| EMMC | Not support |
YES MAX :17MB/s |
YES MAX: 40MB/s |
| VPP Max.Voltage | 18V |
25V |
25V |
| VCC Voltage | 1.8V-6.5V |
1.8-6.5V |
1.2V-6.5V |
| MX35LF1GE4A P+V（S） |
Not Support |
46S+27S |
16S+19S |
| W25Q80 P+V（S） |
5.0S+1.6S |
3.5S+0.3S |
3.5S+0.2S |
| GD25Q128 P+V（S） |
55S+26S |
30S+5.4S |
30S+3.5S |
| Device List | 17000+ |
31000+ |
33000+ |
| Status | T48 Replacement |
In Production |
In Production |
Information about XGecu T56
XGecu T56 Introduce
Introduce the comprehensive performance of programmer
-
important tips on Piracy:（Click here See the pirated Picture）
1. TL866CS/A programmer has ceased production. If there is a large number of sales may be counterfeit products.
2. There is a large number of pirated TL866CS/A programmers in the market. Counterfeit products can not test every IOs of the programmer, and the quality of products can not be guaranteed.
3. Do not use the third party cloning software to operate the program firmware illegally, otherwise the warranty was cancelled.
-
T48/T56/TL866II instruction manual (English)
TL866II Plus instruction manual
-
T48/T56/TL866II Plus Application Software )
Download the software of the progammer.
-
TL866A/CS Application Software(Old V6.85)
Download the software of the progammer.
-
T56 Plus IC Support List
IC supported List. for T56
-
T48 Plus IC Support List
IC supported List. for T56
-
TL866II Plus IC Support List
IC supported List. for TL866II Plus
-
Programmer Dealer
Our dealer and distributor List.
